The past 3 days I’ve been working on an initial version of the mobile interface for Gzweb. Before anything, some introductions. Gzweb‘s is based on jQuery and jQuery UI:

jquery

jQuery is a JavaScript library that helps with a lot of different things on a website. Within Gzweb it’s used mostly to handle events related to the GUI (things being clicked, basically).

jQueryUI

jQuery UI is a library built on top of jQuery which facilitates styling the GUI, adding animations, interactions and so on. On Gzweb, it’s responsible for the color theme, buttons, menus and whatnot. It’s not very suitable for mobile interfaces though… For that, the jQuery team came up with:

jQueryMobile

Instead of adding mobile-appropriate functionality to jQuery UI, they came up with a completely new library: jQuery Mobile. Like jQuery UI, it adds functionality to jQuery, so you always wanna include both jQuery and one of the interface libraries (jQuery + jQuery UI or jQuery + jQuery Mobile). The catch is that jQuery UI and jQuery Mobile are not compatible! :O They have overlapping functions, so you can’t really use both at the same time… Not without a lot of tweaking at least. This makes it difficult to use this framework for a single website that doubles as desktop and mobile.

Options…

There are many important decisions to be made here. If we use jQuery Mobile, we can either:

  1. Make two separate websites (desktop/mobile)
  2. Make one website that has a lot of media queries to change styles according to the device
  3. Make one website that uses jQuery Mobile for both mobile and desktop versions

If the goal is to have two websites, I could also try using other libraries which don’t overlap with jQuery UI, or even going low level and writing the GUI from scratch.

jQuery Mobile‘s API seemed so simple that I figured I could dedicate a couple of days to implement a rough version of Gzweb with it and see what it is capable of.

Features

Before starting, I must decide what features I’m going to implement. Here is a non-exhaustive list of features I found on Gazebo and Gzweb. When I say Gazebo, I mean gzclient 1.9.1, Gazebo‘s main graphical interface. By Gzweb I mean the development version, not the 1.0. Gazebo Mobile refers to the simple interface I’ve built so far with jQuery Mobile. I’ve arranged features in a way that made sense to me, not necessarily by where they can be found.

    Gazebo
Gzweb Gzweb Mobile
Clock
Play/Pause
Buttons Button Button
Time step
Button
Reset world
Button Button Button
Sim/Real time
Display Display Display
Real time factor
Display
  Real time update rate
Input value
Maximum step size
Input value
Build world
Insert
Models
Unit cube
Button, move, click Button, move, click Button, drag touch
Unit sphere
Button, move, click Button, move, click Button, drag touch
Unit cylinder
Button, move, click Button, move, click Button, drag touch
Others
Button, move, click
Lights
Point light
Button, move, click
Spot light
Button, move, click
Directional light
Button, move, click
Edit
Models
Translate (translate mode)
Free
Left-press + drag handle
each axis
Left-press + (X/Y/Z) + drag / input values Left-press + drag handle
within a plane
Left-press + drag (ground plane) Left-press + drag handle
Rotate (rotate mode)
About vertical
Left-press + drag
each axis
Left-press + (X/Y/Z) + drag / input values Left-press + drag handle
Scale
Keeping aspect ratio
each axis
Others
Static
Button
Link
Several options
Scene
Ambient
Input RGB values
Background
Input RGB values
Physics
Gravity
Input X/Y/Z values
  Solver iterations
Input value
Solver SOR
Input value
Constraint Force Mixing
Input value
Error Reduction Parameter
Input value
Maximum velocity
Input value
Surface layer
Input value
Others
Save world
Button
Reset model poses
Button Button Button
Building editor
Button opens editor
View
Move camera
Translate
Free
Left-press + drag Left-press + drag 3-finger drag
each axis
Left-press + (X/Y/Z) + drag
Orbit
Free
Middle-press + drag Middle-press + drag 1-finger drag
each axis
Middle-press + (X/Y/Z) + drag
Zoom
Free
Scroll wheel Scroll wheel / Right-press + drag Pinch
each axis
Scroll wheel + (X/Y/Z)
Accelerated zoom
Alt + scroll wheel
Others
Jump to object
Double click
Show
Visual
Show grid
Button
Transparent
Button
Wire frame
Button
SSAO effect
F2 Button
Shadows
Toggle
Physics
Enable
Toggle
Collisions
Button Button Button
Joints
Button
Center of mass
Button
Contacts
Button
Others
Reset view/camera
Button
Select object
Click (object menu) Click
Full screen
Button F11 F11
Topic visualization
Button
Log data
Button

The 1st prototype

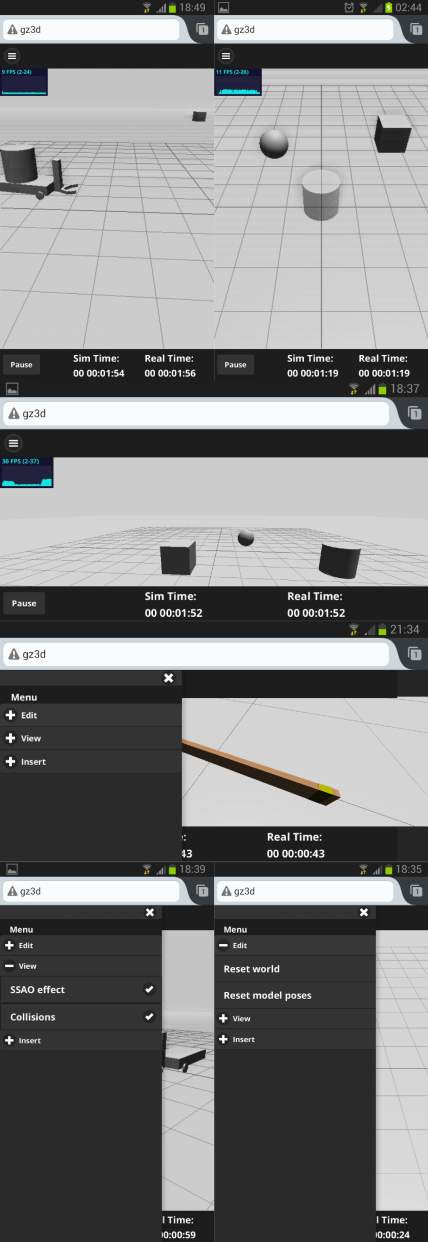

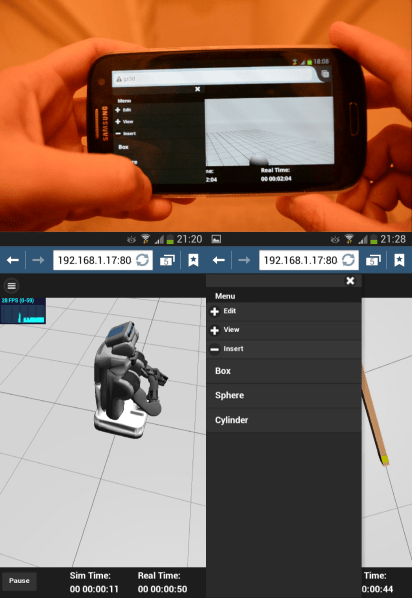

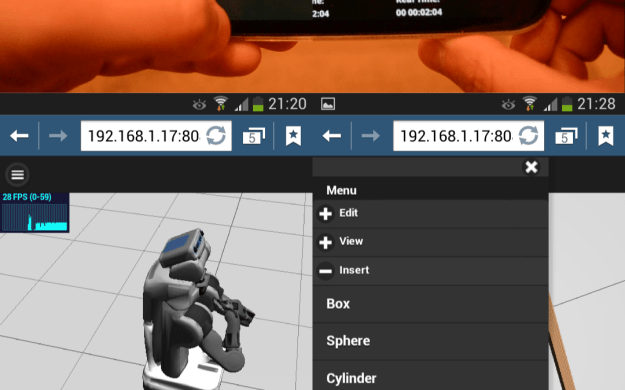

On the screenshots and video, you can see some of the styling and functionality of the interface I’ve implemented so far. The design was highly based on the discussions I had with Steffi and Ian, but of course it is far from a satisfactory version.  Here‘s the repository I’m working at. I won’t describe the whole process, but I’ll make some comments:

post4

  • The page is divided into 4 parts: header, footer, canvas and left panel.
  • The header only contains the button to open the container and the footer contains the clock. They are always visible for now.
  • The panel contains the menu styled like an accordion (or container set). Originally I was making the panel push the canvas to the side as it opens, but when inserting models it feels like overlaying the canvas makes more sense since things just stay in place, so that’s how it is right now.
  • The menu options include those on Gzweb‘s menu (reset world/models, view collisions), plus an SSAO effect which is accessible by F2 on Gzweb. I also moved the insertion of basic shapes (box/cylinder/sphere) from a toolbar to the menu. For the toggle-type options, there’s a checkbox.
  • The canvas fits between header and footer and is resized with the window (that was one of the most difficult things to do). It’s still not perfect though, going from portrait to landscape on a mobile works well, but coming back not so much.
  • Camera movement is controlled by touch as: one-finger = orbit, two-finger pinch = zoom, three-finger = translation.
  • Currently, the canvas responds to touch even on top of the panel, which is a problem when scrolling the panel.
  • Shapes are inserted as follows: click on its name on the panel -> close the panel (either with the close button or by tapping the canvas) -> drag the model to the desired position by touch -> un-touch. The model is transparent while until it is fixed.
  • There’s no way to edit the models once they’ve been placed (translate and rotate modes). This is the main difference from Gzweb right now as you can see on the table above. I haven’t worked on it since we’re still deciding on what kinds of interactions would be interesting.
  • Getting custom buttons for play/pause was getting harder than I expected, so I’ll do it later.
  • So far I’ve kept all features mouse-compatible, so the site can be used with non-touch devices. (In case we decide on a single website).

“Wait, weren’t you supposed to be optimizing the graphics first?”

Yes, my original plan was to first optimize the graphics performance for mobile devices, and then think about the interface. There’s a reason for that. While I was applying for OPW, I had quickly tested the original Gzweb on a Galaxy S3’s Android browser and as I showed on a video, it just doesn’t render. Back then, I thought this was because the models were too large to be rendered, considering that my previous Three.js project had rendered well on the same browser. So I thought “Well, unless something renders I cannot even start thinking of an interface”. After I started checking different browsers and devices however, I realized that on some browsers/devices, although with a low fps, things were rendering. For the interface, that’s all I need to begin with.

Another reason for my detour is that I wanted to feel like I had made some progress. Although I’ve been slowly contributing to Gzweb, I have made almost no progress towards optimizing the graphics. I’ve been reading blogs, academic papers, watching videos, looking for code examples, getting familiar with different 3D file formats… I’m all over the place. Ian is helping me focus and narrow down alternatives. On the other hand, the discussions about the interface seemed to be progressing. All this led me to make a little new goal:

Have a somewhat functional mobile interface before 2014

And here we are 🙂 Happy New Year 😉
